HD Picatinny Rail for Browning X-Bolt (Magnum / Gen 2) - 0 MOA

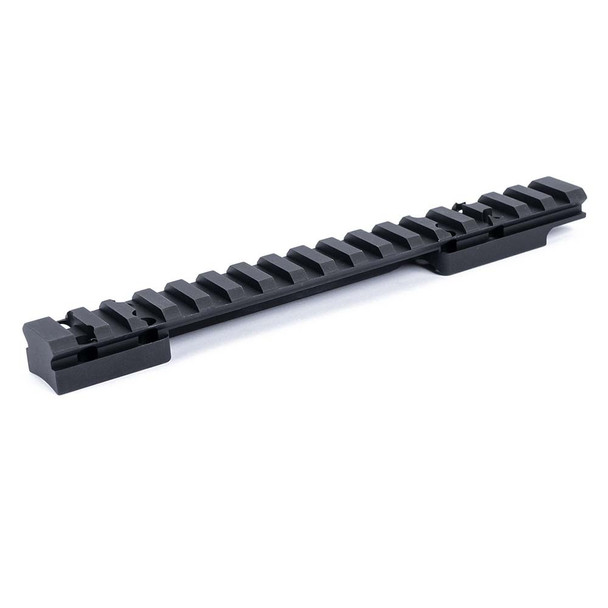

The ultimate accuracy and durability upgrade for your Browning X-Bolt. The EGW Heavy-Duty (HD) Picatinny Rail is precision-machined from 7075 T6 aluminum to provide a rock-solid, one-piece platform for mounting any scope. Our one-piece rail eliminates the flex of two-piece bases and is engineered to fit the specific action patterns of modern X-Bolt rifles, ensuring your optic holds zero under the heaviest recoil.
CRITICAL FITMENT GUIDE: Gen 1 vs. Gen 2 X-Bolt
Gen 1 X-Bolt: This rail fits Gen 1 MAGNUM ACTIONS ONLY (e.g., .300 RUM, 300 PRC, .375 H&H, 7mm PRC). It will NOT fit Gen 1 Long Action receivers.
Gen 2 X-Bolt: This rail fits ALL Gen 2 ACTIONS (both Long and Magnum), as Gen 2 receivers now use the Gen 1 Magnum hole pattern.
Please measure your inside hole spacing to confirm. The center-to-center spacing of the two inner holes on your receiver should be 3.93".
Firearm Compatibility
This Mount Fits:
- Browning X-Bolt Gen 1 (Magnum Action Only)
- Browning X-Bolt Gen 2 (All Long and Magnum Actions)
- Common Calibers: .300 RUM, 300 PRC, .375 H&H, 7mm PRC
The EGW Solution for Your X-Bolt
The secret to repeatable accuracy is a mounting platform that will not shift or fail. Here’s why our HD rail is the superior choice:
- ✔ Machined from 7075 T6: Our HD rail is machined from solid, American-sourced 7075 T6 aluminum, providing the strength of steel at a fraction of the weight for maximum rigidity under heavy magnum recoil.
- ✔ Superior One-Piece Design: Our one-piece Picatinny rail is significantly more rigid and stable than multi-piece bases, preventing any potential for scope alignment issues and ensuring a true return-to-zero.
- ✔ Full-Length Picatinny Slots: Full-length cross-slots give you maximum flexibility for scope ring placement and proper eye relief, and are compatible with both Picatinny and Weaver rings.
- ✔ Made in the USA: Machined in our Quakertown, PA shop, these rails are tumbled, sandblasted, and receive a Type III hardcoat anodize for long-lasting durability.
Gunsmith & Installation Warning: Check Your Countersink
We STRONGLY suggest taking your gun to a qualified and competent gunsmith to have this mount installed.
Older X-Bolts had front screw holes threaded shallowly. Newer models have a deeper countersink, which can prevent screws from engaging enough threads, leading to stripped holes. Our mounts made after January 2021 (date code '21' or higher on the bottom) have a deeper countersink to match newer rifles.
We recommend test fitting the screws before Loctiting. If the screws only engage with one thread (on an older mount), please contact us for longer screws. If the screws bottom out (on a newer mount with an older rail), we recommend removing a small amount of material from the screw.
Specifications
Rail Type: One Piece Picatinny
Machined from: Solid 7075 T6 Aircraft Grade Aluminum
Finish: Matte Black Hardcoat Anodize (Type III)
MOA: 0
Center Spread: 3.93"
Overall Length: 7.075"
Height: .525" (Top of Receiver to Top of Picatinny)
Weight: 2.5 oz.
Quick Disconnect Ring Compatible: Yes
Ambidextrous: No
Ring Compatibility: Picatinny and Weaver

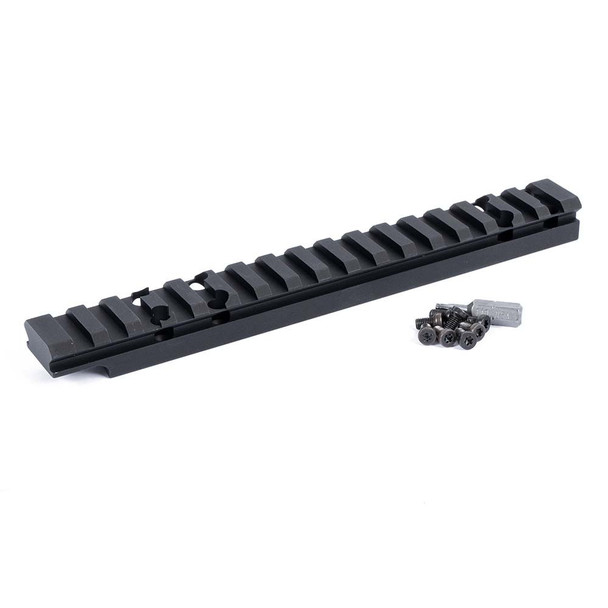

Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
Torque Specs: 20 in/lbs
|
Specifications:
|
Rail Type: One Piece Picatinny |
|
Scope Mount Material:
|
7075 Aluminum
|
|
Scope Mount Color:
|
Black Hardcoat Anodized Type III
|
|
Material:
|
7075 Aluminum
|
|
Model:
|
X-Bolt
|
|
Brand:
|
Browning
|
|
Minute Of Angle:
|
0 MOA
|
|
Action Length:
|
Magnum Action
|
|
GTIN:
|
841370118441
|
|
Mount Series:
|
Heavy Duty
|
|
Mounting:
|
 |
