Description
Mounting Hardware is Included
This mount fits:
Smith & Wesson K Frame Revolvers
Smith & Wesson L Frame Revolvers
Smith & Wesson N Frame Revolvers
Smith & Wesson X Frame Revolvers

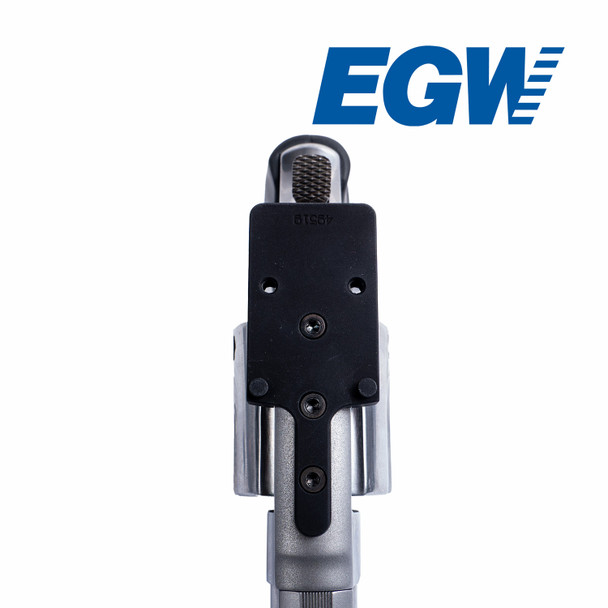

This mount is now updated to use 2 of the 3 holes on the top strap of the revolver. It does not use the front hole.

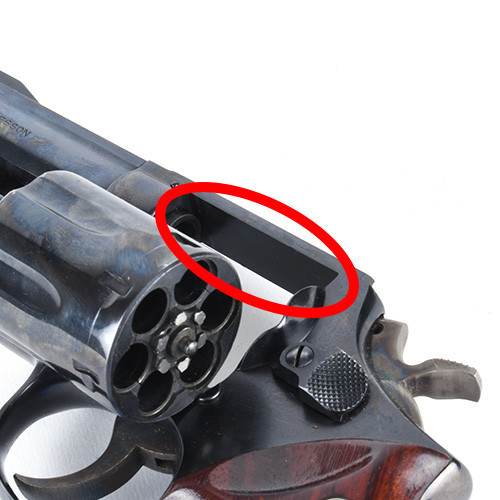

If your revolver is not drilled and tapped this mount will not work. The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not (like the above image) this mount will not work without you having the gun drilled and tapped. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.
Please note: Trijicon recommends the use of a sealing plate to prevent water from entering their red dots.
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.780"
Overall Width: 1.1"
Mounting Hardware:
(2) 6-32 Flat Head Screws
(2) 6-48 X 1/4" Torx Screw
Red Dot Fitment:
Trijicon RMR
Trijicon SRO
Holosun HE407C
Holosun HE407C X2
Holosun HE507C
Holosun HE507C X2
Holosun HS407C
Holosun HS407C X2
Holosun HS507C
Holosun HS507C X2
Swampfox Kingslayer
Swampfox Liberty
Swampfox Justice
Simply remove the rear sight on your gun and replace it with our mount in order to mount your Trijicon RMR red dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in place of the rear sight
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
2 Flat Head Cap Screws - Provided for Trijicon RMR
The screws that are included with this mount require a 5/64'' allen wrench for installation.
Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
GTIN 841370116546
Scope Mount Color Black Hardcoat Anodized Type III
Model Smith & Wesson Revolver (K-Frame, L-Frame, N-Frame, X-Frame - Factory Drilled)
Firearm Brand Smith & Wesson
Red Dot Brand Holosun 407C / 507C / 508T, Swampfox Kingslayer / Liberty / Justice, Trijicon RMR / SRO
