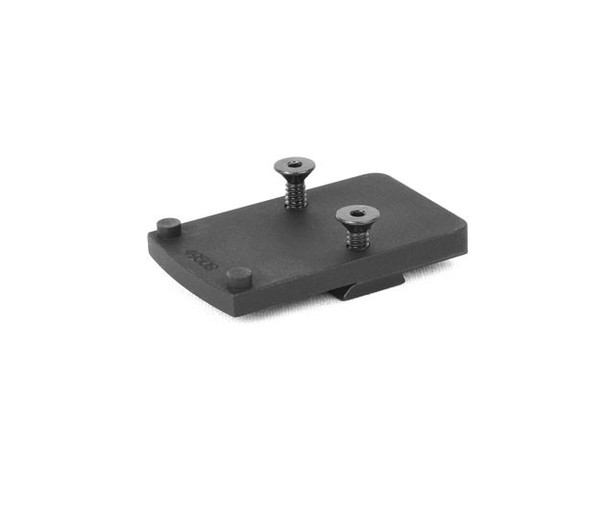

EGW Red Dot Sight Mount for Smith and Wesson (S&W) M&P (fits Trijicon RMR / SRO, Holosun 407c / 507c)

Mounting Hardware is Included

This is a press fit mount. Utilization of a sight pusher tool may be required.

WE RECOMMEND THIS PLATE BE INSTALLED BY A QUALIFIED AND COMPETENT GUNSMITH.

This mount will fit:

• Smith & Wesson M&P Full Size
• Smith & Wesson M&P 2.0 Full Size
• Smith & Wesson M&P 22 Full Size
• Smith & Wesson M&P Compact
• Smith & Wesson M&P 2.0 Compact
• Smith & Wesson SD9VE
• Smith & Wesson SD40VE
• Smith & Wesson M&P Shield
• Gen 1 Tisas (Zigana) PX9

This mount does not fit:

• Smith & Wesson M&P C.O.R.E Series (Already optics ready)
• Smith & Wesson M&P Shield EZ .380
• Smith & Wesson M&P Shield EZ 9mm
• Smith & Wesson M&P .22 Compact
• Smith & Wesson SW9VE
• Smith & Wesson SW40VE
• Smith & Wesson Bodyguard 2.0

The hole for the set screw on this mount is drilled off-center intentionally. This is to allow the set screw to be tightened against the bottom of the dovetail cut in the slide. This creates an upward force on the dovetail of the mount. If the hole were cut in the center of the dovetail, the set screw would fall through the hole cut in the center of the slide which would render the set screw useless.

Smith and Wesson's rear sight dovetails are known to vary in dimensions. Our sights are made to the same tolerances. Some users may have trouble installing our plate on their slide due to the varying tolerances in your slides. Please keep this in mind when ordering. Our return policy does allow for returns of unused and undamaged parts. These mounts should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.

Please note: Trijicon recommends the use of a sealing plate to prevent water from entering their red dots.

Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.780
Overall Width: 1.1"
Mounting Hardware: (2) 6-32 Flat Head Screws, (1) 6-32 X 3/16 Set Screw
Red Dot Fitment: Trijicon RMR / SRO, Holosun HE407C / HE507C / HS407C / HS507C, HS407A3 X2, Swampfox Kingslayer / Liberty / Justice

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Trijicon RMR red dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.

Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs

*Rear sight pusher tool highly recommended*
