Smith & Wesson Revolver Red Dot Mount – Fits Vortex Venom (Open Emitter), Viper, Burris FastFire & Docter Footprint Optics
Fits: K, L, N and X Frame S&W Revolvers.
Mounting Hardware Included: Yes.
Optic Footprint: Docter / FastFire / Viper / Venom compatible.
Installation: Replaces factory rear sight assembly.
Installation & Overview

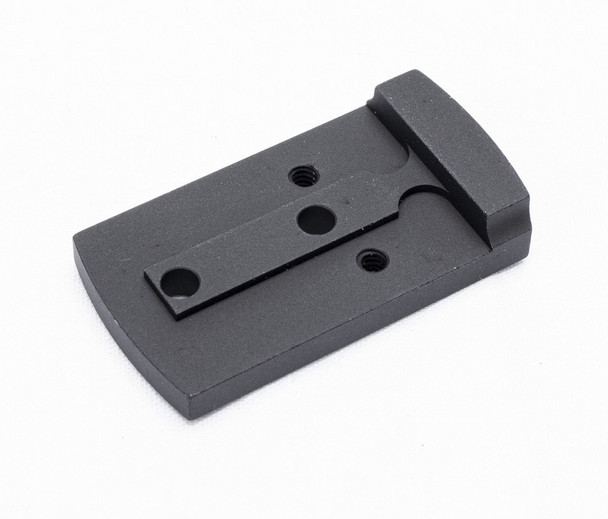

The EGW Smith & Wesson revolver red dot mount allows you to mount popular Docter footprint optics directly to your revolver by replacing the factory rear sight. Designed specifically for drilled and tapped Smith & Wesson revolvers, this mount provides a stable, low-profile optic mounting solution without requiring permanent modification to the firearm.
Compatible with optics like the Vortex Venom (open emitter), Vortex Viper, Burris FastFire series, and other Docter footprint red dots, this mount is precision machined from durable 7075 aluminum and finished in matte black hardcoat anodizing for long-term durability and recoil resistance.
If your revolver is not drilled and tapped from the factory, this mount will not fit unless the revolver is properly drilled and tapped by a qualified gunsmith using the standard Smith & Wesson hole pattern.
Due to manufacturing tolerances between firearms, minor fitting may be required.
- Material: 7075 Aluminum
- Finish: Matte Black Hardcoat
- Overall Length: 1.811"
- Overall Width: .99"
- Torque Specs: 15 in/lbs
- Mounting Style: Rear Sight Replacement
- Made In: USA
Compatible Firearms
- Smith & Wesson K Frame Revolvers
- Smith & Wesson L Frame Revolvers
- Smith & Wesson N Frame Revolvers
- Smith & Wesson X Frame Revolvers
Compatible Red Dots
- Viridian RFX25
- Vortex Viper
- Vortex Venom (Open Emitter)
- Burris FastFire
- Burris FastFire 2
- Burris FastFire 3
- Burris FastFire 4
- Docter
- ADE RD3-001
- ADE RD3-002
- ADE RD3-009
- UTG Reflex Micro Dot
- Crimson Trace CTS-1200
- Crimson Trace CTS-1300
- Sightmark Mini Shot
- Cuda RX-795
Why Choose This EGW Mount?
- ✔ No permanent slide modification required
- ✔ Low-profile optic mounting solution
- ✔ Precision machined from 7075 aluminum
- ✔ Designed specifically for drilled and tapped Smith & Wesson revolvers
- ✔ Compatible with many popular Docter footprint optics
- ✔ Made in the USA
Mounting Hardware Included
- (2) 6-32 x 3/8 Flat Head Cap Screws
- (2) 6-32 x 5/16 Button Head Screws
- (2) 6-48 x .313 Mount Screws (Clear Bag Screws)
Installation Instructions

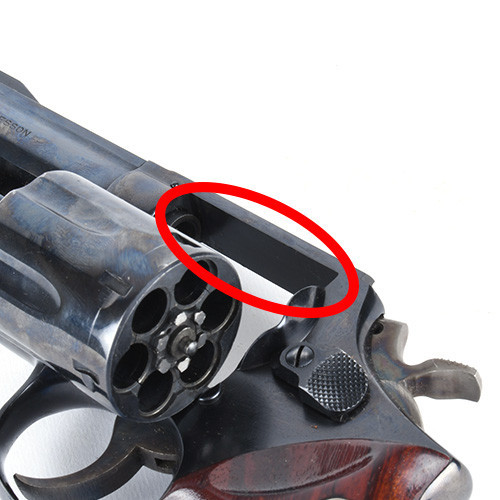

- Remove the factory rear sight
- Install the EGW Sight Mount in place of the rear sight
- Place the optic onto the mount
- Apply blue Loctite to mounting screws
- Torque mounting screws to 15 in/lbs
Fitment Notes
Your revolver must be drilled and tapped in order for this mount to fit properly.
Due to manufacturing tolerances between firearms, minor fitting may be required.
Fitment Note: Due to normal manufacturing tolerances commonly found in revolver production, minor fitting may be required for proper installation. Rear sight dimensions can vary slightly between revolvers of the same make and model due to differences in casting, machining, and finishing processes.
WE RECOMMEND THIS PLATE BE INSTALLED BY A QUALIFIED AND COMPETENT GUNSMITH.
|
Short Description:
|
Mounting Hardware is Included This mount fits: |
|
Specifications:
|
Material: 7075 Aluminum Mount |
|
Scope Mount Color:
|
Black Hardcoat Anodized Type III
|
|
Material:
|
7075 Aluminum
|
|
Model:
|
Smith & Wesson Revolver (K-Frame, L-Frame, N-Frame, X-Frame - Factory Drilled)
|
|
Brand:
|
Smith & Wesson
|
|
Red Dot Brand:
|
Vortex Venom (not enclosed) / Viper
|
|
Red Dot Brand:
|
ADE RD3-001 / RD3-002 / RD3-006 / RD3-009 / RD3-012 / RD3-013 / RD3-015
|
|
Red Dot Brand:
|
Burris FastFire 1, 2, 3, 4
|
|
Red Dot Brand:
|
Crimson Trace CTS-1200 / CTS-1300
|
|
Red Dot Brand:
|
Docter
|
|
Red Dot Brand:
|
Cuda RX-795
|
|
Red Dot Brand:
|
Viridian RFX25
|
|
GTIN:
|
841370112937
|
|
Pin Selection:
|
Pin Set
|
