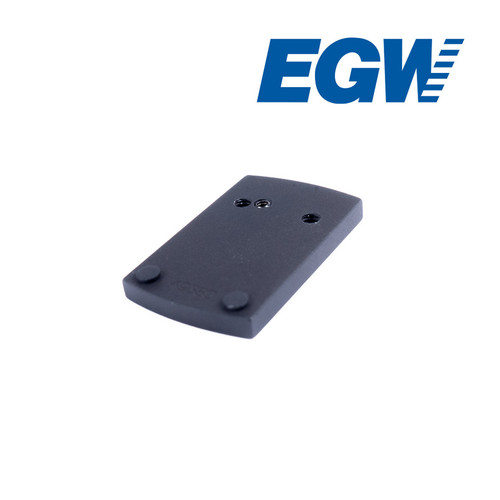

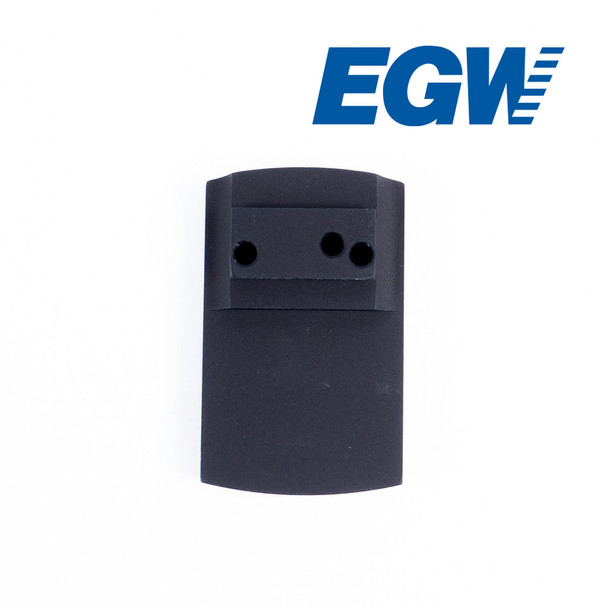

This Optics Mounting Plate Fits the Following Pistols:
Kimber Micro 9
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.811"
Overall Width: .99"
Torque Specs: 15 in/lbs
Mounting Hardware:
(2) 6-32 x 5/16 Button Head Screws - Requires 5/64 Wrench or Driver
(2) 6-32 x 3/8 Flat Head Screws - Requires 5/64 Wrench or Driver
(1) 6-32 x 3/16 Cup Point Set Screw - Requires 1/16 Wrench or Driver
Red Dot Fitment:
- Vortex Defender Series (Defender XL requires the screws provided by Vortex)
- Vortex Venom (Enclosed Red Dot)
- OSight SE
- Bushnell RXS-100
- Crimson Trace CTS-1500
- Holosun 407K*
- Holosun 407k-GR
- Holosun 507K*
- Holosun 507k-GR
- Holosun EPS-GR*
- Holosun EPS-RD*
- Holosun EPS-Carry-GR*
- Holosun EPS-Carry-RD*
- Jpoint
- Leupold Delta Point Pro
- Optima
- Redfield Accelerator
- Shield RMS
- Shield RMSc
- Shield SMS
- Sig Romeo Zero
Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.
Simply remove the rear sight on your gun and replace it with our mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights
2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights
The screws that are included with this mount require a 5/64'' allen wrench for installation.
WE RECOMMEND THIS PLATE BE INSTALLED BY A QUALIFIED AND COMPETENT GUNSMITH.
|
Short Description:
|
Mounting hardware is included. This mount fits: |
|
Specifications:
|
Material: 7075 Aluminum |
|
Scope Mount Color:
|
Black Hardcoat Anodized Type III
|
|
Material:
|
7075 Aluminum
|
|
Model:
|
Micro 9
|
|
Red Dot Brand:
|
Bushnell RXS-100
|
|
Red Dot Brand:
|
Crimson Trace CTS-1500
|
|
Red Dot Brand:
|
Holosun 407K
|
|
Red Dot Brand:
|
Holosun 407k-GR
|
|
Red Dot Brand:
|
Holosun 507K
|
|
Red Dot Brand:
|
Holosun 507k-GR
|
|
Red Dot Brand:
|
Holosun EPS-GR
|
|
Red Dot Brand:
|
Holosun EPS-RD
|
|
Red Dot Brand:
|
Holosun EPS-Carry-GR
|
|
Red Dot Brand:
|
Holosun EPS-Carry-RD
|
|
Red Dot Brand:
|
Jpoint
|
|
Red Dot Brand:
|
Leupold Delta Point Pro
|
|
Red Dot Brand:
|
Optima
|
|
Red Dot Brand:
|
Redfield Accelerator
|
|
Red Dot Brand:
|
Shield RMS
|
|
Red Dot Brand:
|
Shield RMSc
|
|
Red Dot Brand:
|
Shield SMS
|
|
Red Dot Brand:
|
Sig Romeo Zero
|
|
Red Dot Brand:
|
Vortex Defender Series
|
|
Brand:
|
Kimber
|
