Mounting Hardware is Included

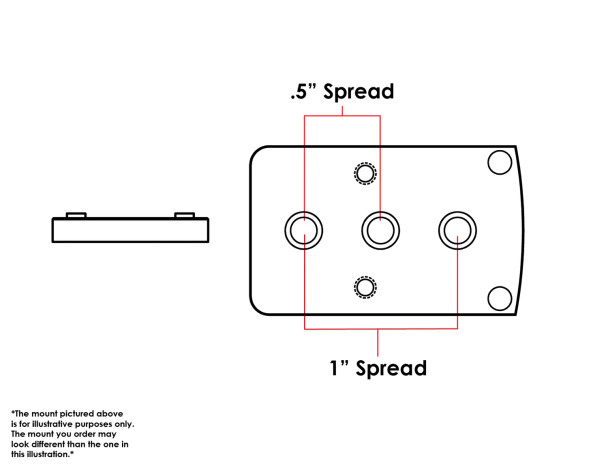

This Mount Fits:
Camp Carbine 9mm (does not fit the early models, the hole spacing is different)
Camp Carbine 45
Glenfield 30
Henry Big Boy (H006)
Henry 3030 (H009)
Henry 4570 (H010)
Henry Big Boy (H012)
Henry Long Ranger (H014)
Henry .410 (H018) Only fits the 20" Barrel
Henry Side Gate Lever Action (H024)
Henry Long Ranger
Henry Homesteader (must use rear holes on receiver)
Marlin 1895
Marlin 1894
Marlin 336
Marlin 375
Marlin 444
Marlin Model 36
Ruger PC Carbine*
*This mount only works with the Ruger PC Carbines that do not have the AR style handguard.
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.780"
Overall Width: 1.1"
Mounting Hardware: (2) 6-32 Flat Head Screws, (1) 6-32 Set Screw
Red Dot Fitment: Trijicon RMR / SRO, Holosun HE407C / HE507C / HS407C / HS507C, Swampfox Kingslayer / Liberty / Justice
Simply remove the rear sight on your gun and replace it with our mount in order to mount your Trijicon RMR red dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
2 Flat Head Cap Screws - Provided for Trijicon RMR
The screws that are included with this mount require a 5/64'' allen wrench for installation.
WE RECOMMEND THIS PLATE BE INSTALLED BY A QUALIFIED AND COMPETENT GUNSMITH.
|
Short Description:
|
Mounting Hardware is Included This Mount Fits: |
|
Specifications:
|
Material: 7075 Aluminum |
|
Scope Mount Color:
|
Black Hardcoat Anodized Type III
|
|
Material:
|
7075 Aluminum
|
|
Model:
|
Long Ranger (H014);Model 1894;Model 1895, 336, 444, 36, 375, 9, Camp Carbine 9mm, Camp Carbine .45;PC Carbine
|
|
Brand:
|
Henry
|
|
Red Dot Brand:
|
Holosun 507C
|
|
Red Dot Brand:
|
Holosun 508T
|
|
Red Dot Brand:
|
Holosun 407C
|
|
Red Dot Brand:
|
Trijicon SRO
|
|
Red Dot Brand:
|
Swampfox Justice
|
|
Red Dot Brand:
|
Swampfox Liberty
|
|
Red Dot Brand:
|
Swampfox Kingslayer
|
|
Red Dot Brand:
|
Viridian RFX35
|
|
Red Dot Brand:
|
Bushnell RXM-300
|
|
Red Dot Brand:
|
ADE Advanced Optics RD3 (Stingray, Raptor, Valkyrie)
|
|
Red Dot Brand:
|
Trijicon RMR HD
|
|
Red Dot Brand:
|
Holosun HS507Comp
|
|
Red Dot Brand:
|
Swampfox Justice II
|
|
Red Dot Brand:
|
Swampfox Liberty II
|
|
GTIN:
|
841370116423
|
|
Mounting:
|
 |
|
Brand:
|
Marlin
|
|
Brand:
|
Ruger
|
